Sonoff B1, lights and shades

Six months ago I was reviewing the AiThinker AiLight, a great looking light bulb with an embedded ESP8266EX microcontroller, driven by a MY9291 LED driver. Just before summer IteadStudio released it’s Sonoff B1 [Itead.cc] light bulb, heavily inspired (probably same manufacturer) by the AiLight, at least on the design.

Now that IteadStudio has become popular between the home automation community you can also find the Sonoff B1 on global marketplaces like Ebay or Aliexpress for around 13‚ā¨.

A closer look at the B1 uncovers some important differences. But before going deeper into the details let me first say that this post will probably look more like a review, at least more than I use to write. And second, yes: ESPurna supports the Sonoff B1 ūüôā

Continue reading

p1240271s

Connected power meter

A few weeks ago a user came with a request to add support in ESPurna to a power meter that had been hacked by Karl Hagström. It is a very cheap chinese power meter with plenty of room on the inside, enough to house an ESP8266 module and a DC/DC power supply and the main IC protocol had been reverse engeneered. There even was a repository by the Harringay Maker Space with sample code for an arduino compatible platform.

I found it really interesting so I jumped in and ordered two of them (for 25,20 euros in total). Unfortunately the seller I bought it from has ran out of them. But you can still find them on the usual market places, like these ones [Ebay] or (also with non-EU variants) these ones [Aliexpress].

When I received them I quicky unscrewed the enclosure of one of them and… wow, it looked slightly different than that on Karl’s post but also different from the one the people at Harringay Maker Space had worked with.

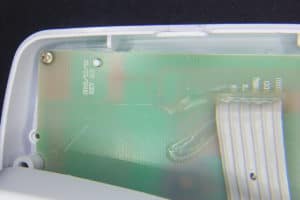

p1240281s p1240279s

I went back and forth and I¬†noticed the hack was almost 2 years old¬†and the board was clearly different: different version (unlabelled on Karl’s pictures, version 2014-04-28 on Harringay’s power meter and 2016-12-18 on mine), different board layout with a different connector between the power meter board and the display (7 wires on theirs, 6 on mine). But the most important difference was the main power meter IC. Karl had reverse engineered the ECH1560 on his power meter, a 24pin SOP package (on the back on his device, on the front in Herringay’s power meter). Mine was only¬†16pin…

p1240274sI had to decipher the IC mark¬†using parts from¬†both devices since the manufacturer had crossed out the marks (they don’t want us to hack it or what?). Finally my best guess was V9261F. I quicky googled it and… bingo!

Continue reading

20170721_163903s

Hacking the Sonoff RF Bridge 433

Itead Studio has been releasing interesting gadgets for the Home Automation community based on a¬†low price tag and extreme hackability. You can google “sonoff” (the main brand for Itead Studio home automation devices) to get more than a million hits, including official pages, reviews and lots of hacks. The ubiquitous ESP8266¬†(or its sibling ESP8285) is the core of all those devices, using WiFi instead of the traditional RF messages, replacing a remote with mobile apps or voice commands. But also, using custom firmwares like ESPurna, technologies and solutions like MQTT, Node-RED or Home Assistant. But¬†one of the latests devices from the chinese firm tries to bridge the gap between those two technologies: the Sonoff RF Bridge 433.

Continue reading

20170326_222005s

Magic Home LED Controller ESPurna’d

Following the bright path (sic) of the Ai-Thinker AiLight / Noduino OpenLight I wrote about a few weeks ago, now it’s turn for one of those devices you purchase but once they arrive they are stored in the TODO box until they eventually come back to life.

The Magic Home LED Controller [Aliexpress, also available from Ebay] is an ESP8266 based single-color RGB(W) LED strip controller. It works with every 5050 LED strip [Aliexpress] out there. Just be careful since even thou some LED strips are waterproof [Aliexpress] this controller is not.

Being able to flash a custom firmware in the controller lets you really own the device. Why? Because:

  1. You are not required to install a proprietary app on you phone to manage it
  2. You are not limited by the options the developers of that app have decided you will need
  3. You can make it interoperate with other devices at home
  4. You, and only you, know when you turn on your lights
  5. And if all the previous points are not enough: it’s so much fun!

mosaic

Continue reading
